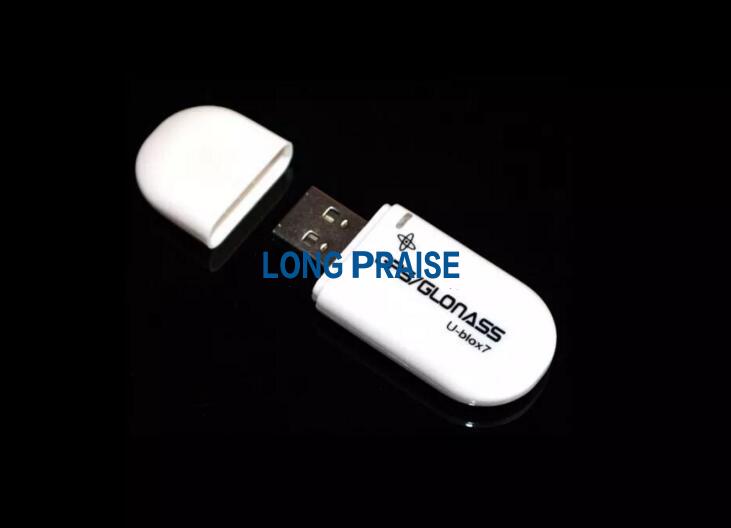

G-MOUSE satellite receiver (hereinafter referred to as G-MOUSE), is a complete GPS receiver. Built-in satellite receiver antenna, and uses the most advanced satellite receiver core, with a full range of capabilities, to meet the stringent requirements of targeted industrial and personal use needs. Scope from the car navigation, car alarm, bus-stop, Car DVR, car video surveillance, car DVD navigation, DVR, car audio, car monitor, car terminals, tracking, security systems, personal positioning, various surveys to agricultural uses Wait. Use only the basic needs (appropriate power supply and the face of the sky)

C / A code, 1.023MHz stream
Reception band: L1 [1575.42MHz]
Tracking channels: 56
Supports DGPS [WAAS, EGNOS and MSAS]
Positioning performance
2D plane: 5m [average]
2D plane: 3.5m [average], there DGPS assistance.
Drift: <0.02m / s
Timing accuracy: 1us
The reference coordinate system: WGS-84
Maximum altitude: 18,000 meters
Maximum speed: 500m / s
Acceleration: <4g
Electrical properties:
Tracking sensitivity: -162dBm
Acquisition sensitivity: -160dBm
Cold start time: 29s [average]
Warm start time: 28s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Operating temperature:
-30 ℃ to + 80 ℃
