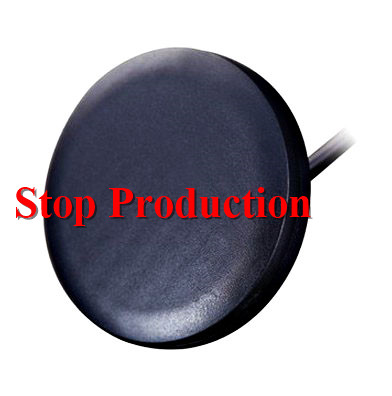

GPS GSM WIFI Combination Antenna LPDGW003
- Center Frequency 1575.42±1MHz
- Band Width CF±5MHz
- Polarization RHCP
- Gain 5dBic(Zenith)
- Product description: waterproof GPS GSM WIFI Combination Antenna LPDGW003, you can contact mary@lpantenna.com directly!
PRODUCT INTRODUCTION
Welcome to our factory.
GPS GSM WIFI Combination Antenna
|
Item |
Specifications |
||
|
GPS Antenna |
Dielectric Antenna |
Center Frequency |
1575.42±1MHz |
|
Band Width |
CF±5MHz |
||
|
Polarization |
RHCP |
||
|
Gain |
2dBic（Zenith） |
||
|
V.S.W.R |
＜1.5 |
||
|
Impedance |
50Ω |
||
|
Axial Ratio |
3dB（max） |
||
|
LNA |
Gain |
28±2dB |
|
|
Noise Figure |
＜1.5 |
||
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
||
|
V.S.W.R |
＜2.0 |
||
|
Supply Voltage |
2.2~5V DC |
||
|
Current Consumption |
5~15mA |
||
|
GSM Antenna |
Frequency Range |
824~960MHz/1710~2170MHz |
|
|
V.S.W.R |
＜2.0（min） |
||
|
Polarization |
Linear |
||
|
Gain |
2.0dBi |
||
|
Impedance |
50Ω |
||
|
WIFI Antenna |
Frequency Range |
2400~2483.5MHz |
|
|
Band Width |
83.5MHz |
||
|
Polarization |
Linear |
||
|
Gain |
3dBi |
||
|
V.S.W.R |
＜2.0（min） |
||
|
Impedance |
50Ω |
||
|
Mechanical |
Cable |
RG174 |
|
|
Connector |
SMA/MCX/FAKRA or others |
||
|
Material |
ABS |
||
|
Mounting Method |
Magnet/Adhesive |
||
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
|
Relative Humidity |
Up to 95% |
||
|
Ingress Protection |
IP65~IP67 (exclude cable outlet) |
||
|
Vibration |
10 to 55Hz with 1.5mm amplitude2hours |
||
|
Environmentally Friendly |
ROHS Compliant |
||
Company Overview
Long Praise Inc Limited is a professional manufacturer and trader of External GPS antenna,GSM antenna,WLAN antenna, 4G antenna,DVBT antenna. All kinds of antennas pass ROHS certificates and especially GPS antenna get CE/FCC/SGS/ROHS approved. With 4 years exporting experience, Our products are highly praised by our customers. Until now, most of our customers are in EU and USA, all the customers comment our products of EU quality and Chinese Price We are not only equipped with a group of network analyzers, spectrum testers, noise detectors and other advanced apparatus, but also have antenna experts and professional testing sites
Both the quality and price of our products are competitive. We also deliver goods in time and provide perfect after-sale service
Our Services And Advantage
1>. Profession information management system.
2>. Receive small order purchase.
3>. Excellent technology and technicians .
4>. 100% inspection before shipping out.
5>. We are the factory, the price is lower than foreign trade company.
6>. Fast delivery and best packaging.
7>. One-stop service.
8>. Good reputation.
9>.1 Year Warranty
