RG174 RG178 MCX MMCX GPS antennas for car LPG001

Frequency:1575.42+/-1MHz
Band Width:CF+/-5MHz
Polarization:RHCP
Connector:SMA/MCX/FAKRA/others
Product description: active external high gain gps antenna, which converted electromagnetic energy from a satellite into radio signal for GPS device. Our GPS antenna is made of a ceramic antenna and active antenna amplifi
Inquiry

PRODUCT INTRODUCTION

Welcome to our factory.

active External GPS Antenna

Item		Specifications
Antenna	Center Frequency	1575.42±1MHz
	Band Width	CF±5MHz
	Polarization	RHCP
	Gain	5dBic(Zenith)
	V.S.W.R	<1.5
	Impedance	50ohm
	Axial Ratio	3dB(max)
	Dimension	394915mm
LNA	Gain	28±2dB
	Noise Figure	<1.5
	Filter Insertion Loss	<3dB
	Ex-band Attenuation	12dB CF+50MHz/16dB CF-50MHz
	Supply Voltage	2.2-5V DC
	Current Consumption	5-15mA
	V.S.W.R	<2.0
Mechanical	Cable	RG174
	Connector	SMA/MCX/FAKRA or others
	Radome Material	ABS
	Mounting Method	Magnet/Adhesive
Environmental	Operating Temperature	-40-+85 degree
	Relative Humidity	Up to 95%
	Ingress Protection	IP65-IP67
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

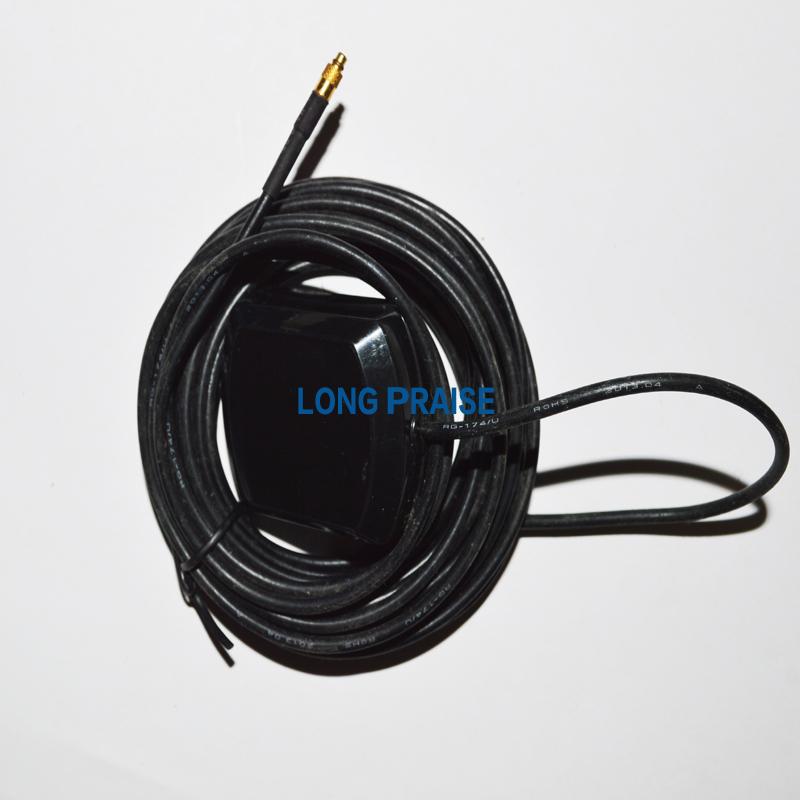

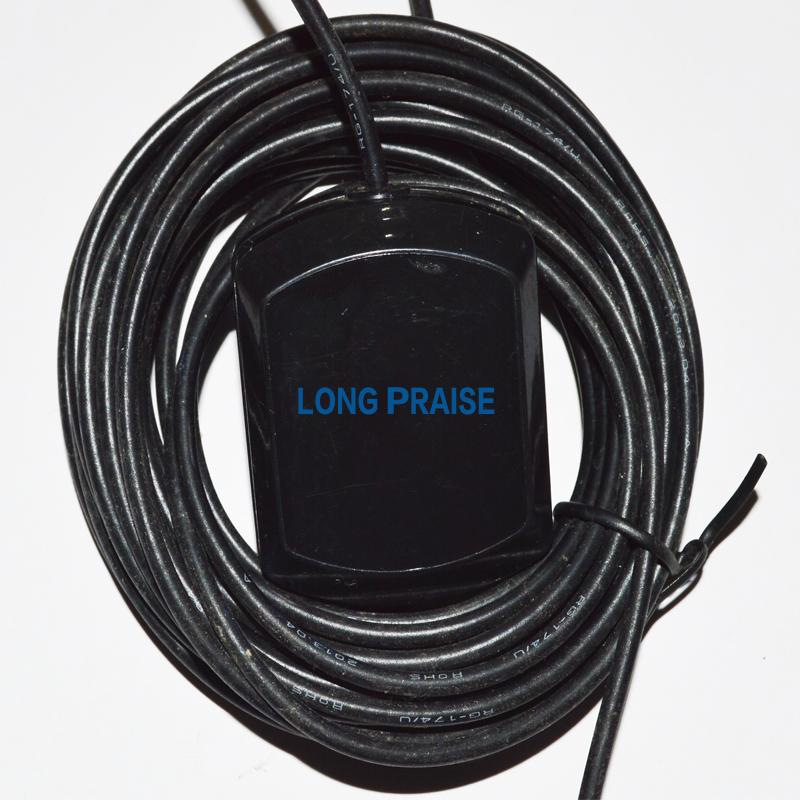

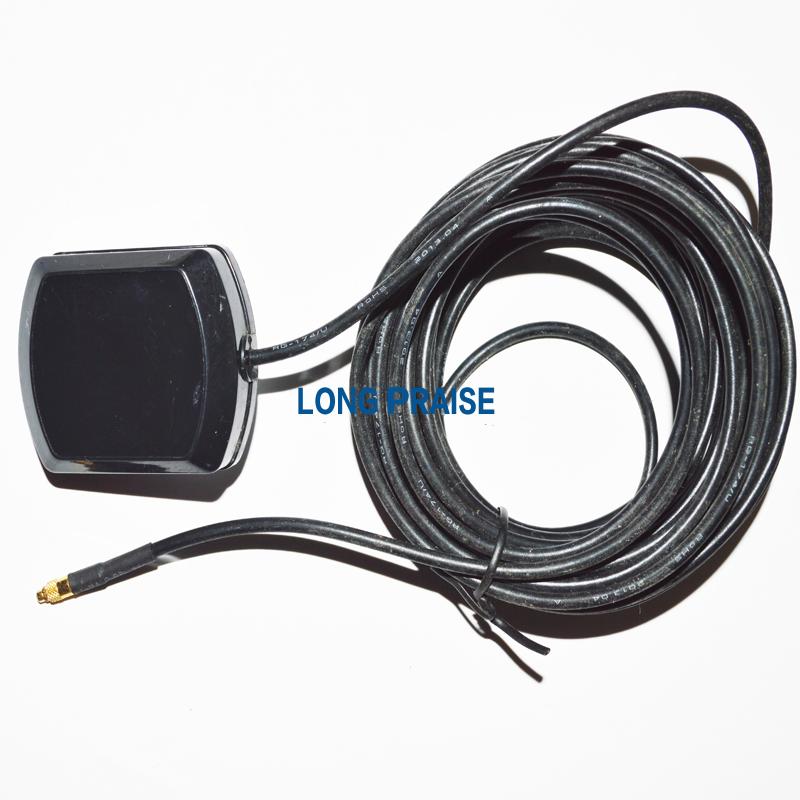

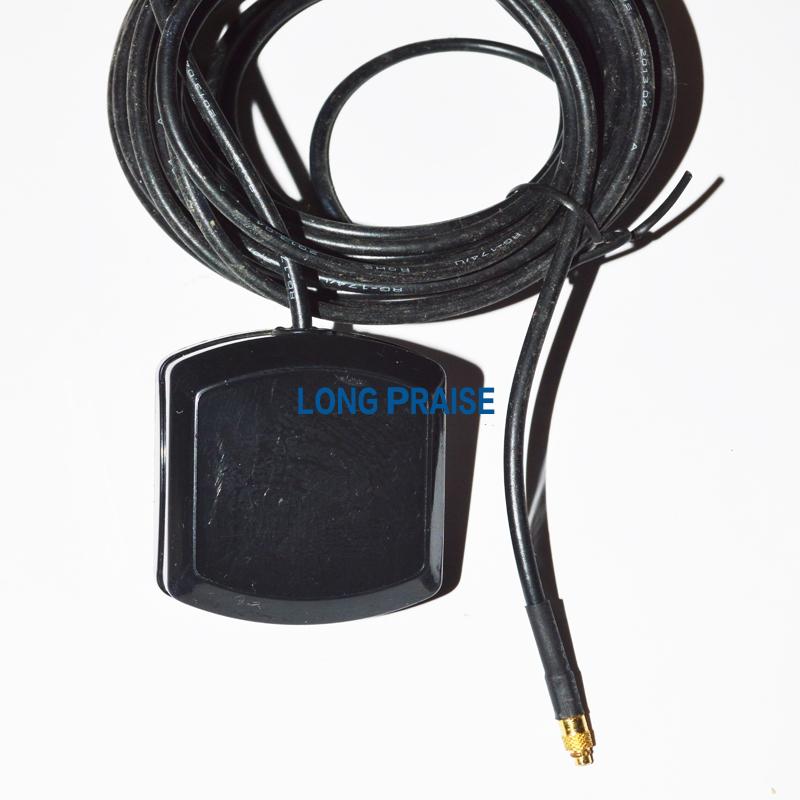

Active external GPS Receiving antenna, which converted electromagnetic energy from a satellite into radio signal for GPS device. Our GPS antenna is made of a ceramic antenna and active antenna amplifier. With plastic shell package , so it is waterproof , which is compact, equipped with a magnet at the bottom of the antenna, easy to install.
