> Others
WIFI Internal Antenna LPIW002
- Frequency Range 2400-2483.5MHz
- Band Width 83.5MHz
- Polarization Linear
- Gain 0dBi
- Product description: WIFI Internal Antenna LPIW002
PRODUCT INTRODUCTION

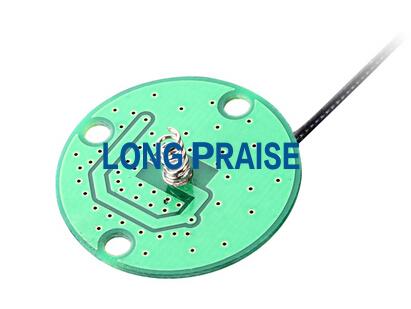

PCB WIFI Internal Antenna
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
2400-2483.5MHz |
|
Band Width |
83.5MHz |
|
|
Polarization |
Linear |
|
|
Gain |
0dBi |
|
|
V.S.W.R |
<3.0 |
|
|
Impedance |
50ohm |
|
|

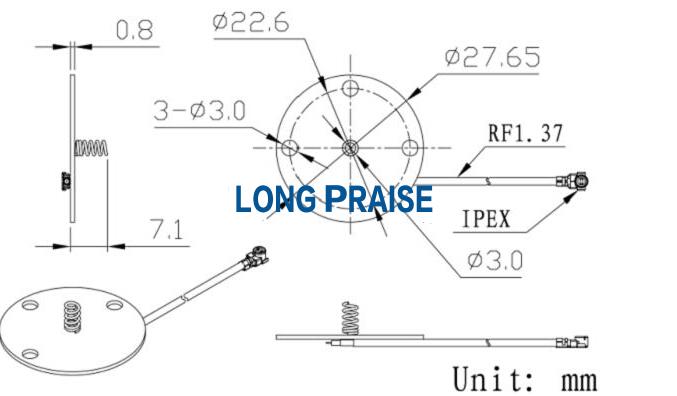

PCB Dimension |
27.65x0.8mm |
|
|
Mechanical |
Cable |
RF1.13/RF1.37 or others |
|
Connector |
IPEX or others |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40-+85 degree |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
