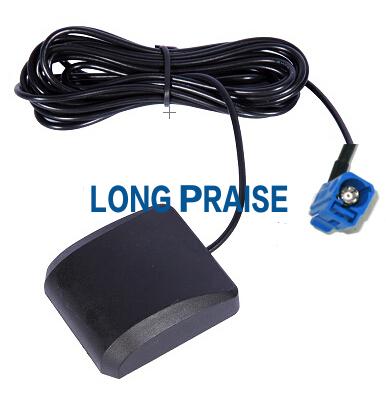

Model

LPG004

Frequency:

1575.42+/-1MHz

Band Width:

CF+/-5MHz

Polarization:

RHCP

Gain:

5dBi

V.S.W.R:

1.5

Impedance:

50ohm

Axial Ratio:

3dB

Dimension:

39x33x14mm

LNA Gain:

28+/-2dB

Noise Figure :

1.5

Filter Insertion Loss :

3dB

Supply Voltage:

2.2-5V DC

Current Consumption:

5-15mA

Cable:

RG174

Connector:

SMA/MCX/FAKRA/others

Radome Material:

ABS

Mounting Method:

Magnet/Adhesive

Vibration:

10 to 55Hz with 1.5mm amplitude 2hours

ROHS Compliant
