> External GSM Antenna
Adhesive External GSM Antenna LPGM005
- Frequency Range 824~894/1710~2170/2400~2500MHz
- Polarization Linear
- Gain 2dBi（Zenith）
- V.S.W.R ＜2.0
- Product description: Adhesive External GSM Antenna LPGM005, contact mary@lpantenna.com
PRODUCT INTRODUCTION
Welcome to our factory.

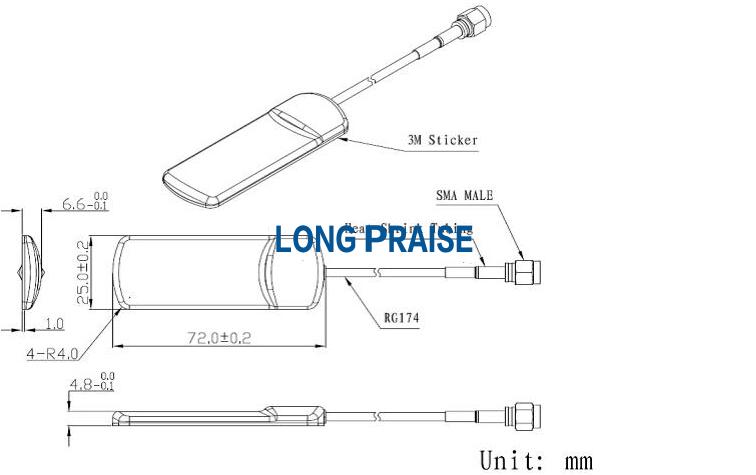

Adhesive External GSM Antenna
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
824~894/1710~2170/2400~2500MHz |
|
Polarization |
Linear |
|
|
Gain |
2dBi（Zenith） |
|
|
V.S.W.R |
＜2.0 |
|
|
Impendance |
50Ω |
|
|
PCB Dimension |
62.2*22*0.8mm |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Adhesive |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant
|
|
