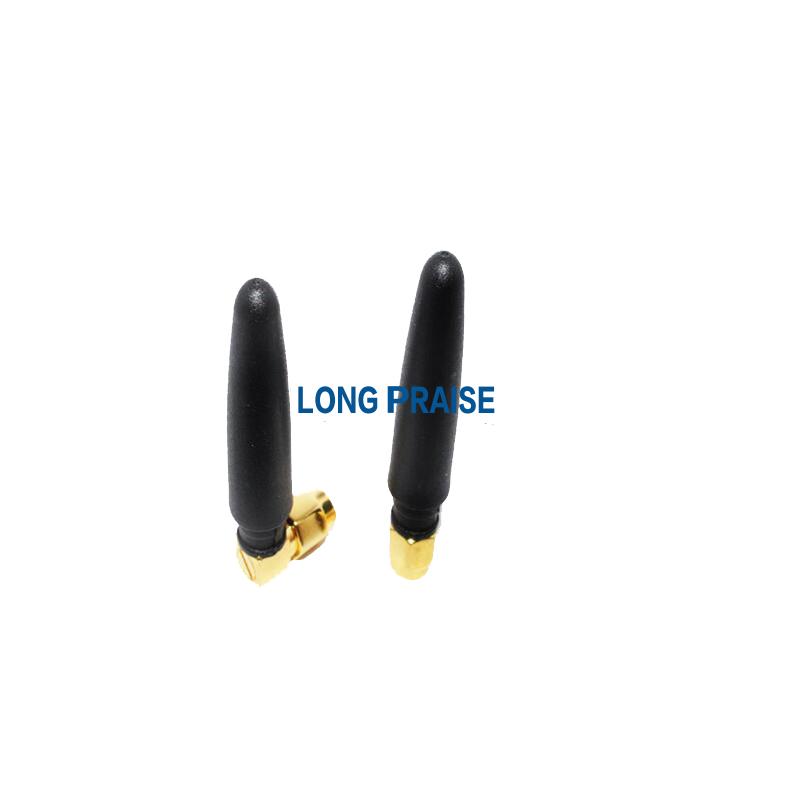

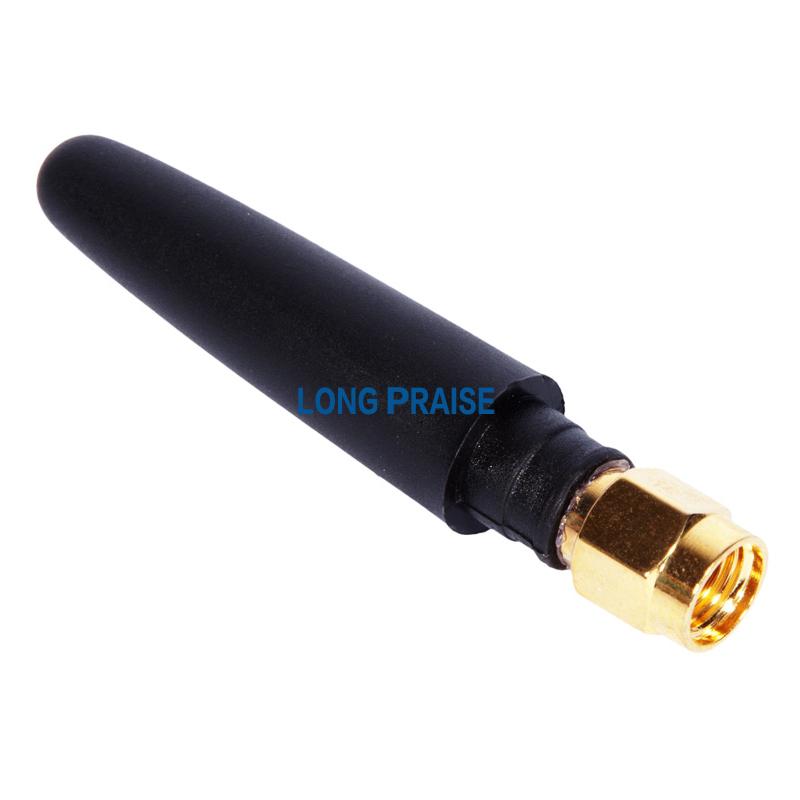

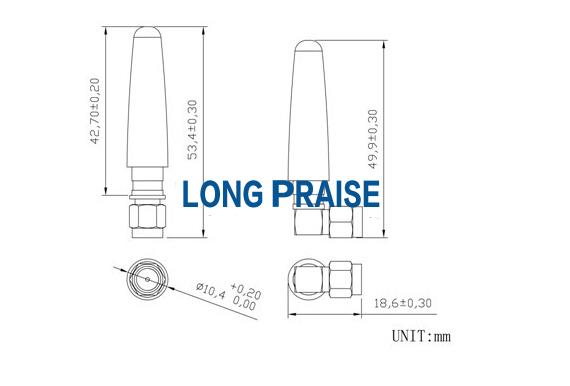

External GSM Rubber antenna SMA connector LPGM010
- Frequency Range 824~894/1710~2170MHz or 880~960/1710~2170MHz
- Polarization Linear
- Gain 2dBi(Zenith)
- V.S.W.R(min) <2.5
- Product description: External GSM Rubber antenna SMA connector LPGM010, very good signal and small size
PRODUCT INTRODUCTION
Welcome to our factory.
External GSM Rubber antenna SMA connector
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
824~894/1710~2170MHz or 880~960/1710~2170MHz |
|
Polarization |
Linear |
|
|
Gain |
2dBi(Zenith) |
|
|
V.S.W.R(min) |
<2.5 |
|
|
Impedance |
50Ω |
|
|
Connector |
SMA Male |
|
|
Environmental |
Operating Temperature |
-40-+85 degree |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
