> Internal GPS patch antenna
GPS Patch antenna GPS Internal Antenna LPIG0901
- Size:25*25mm or 27.2*27.2*7mm
- Cable:RG0.81,RG1.13,RG1.32 RG174
- Connector:u.fl,w.fl SMA or other
- Fre:1575.42Mhz
- Product description: GPS Patch antenna, GPS Internal Antenna 1)Directly Antenna Factory 2)High quality and competitive price 3)For GPS Tracker 4)Easy to install
PRODUCT INTRODUCTION
Welcome to our factory.

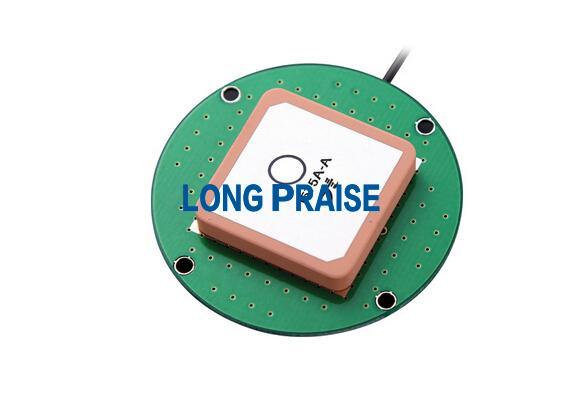

GPS Patch antenna Internal Antenna LPIG0901
Size:25*25mm or 27.2*27.2*7mm
Cable:RG0.81,RG1.13,RG1.32 RG174
Connector:u.fl,w.fl SMA or other
L=100mm
Fre:1575.42Mhz
Specifications GPS internal Antenna
1)Directly Antenna Factory
2)High quality and competitive price
3)For GPS Tracker
4)Easy to install
GPS internal Antenna with 1.13 cable IPEX UFL connector
Help your GPS to get stronger signal
Picks up your position rapidly
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±4MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
2dBi（Zenith） |
|
|
V.S.W.R |
＜1.5 |
|
|
Impendance |
50Ω |
|
|
Axial Ratio |
3dB（max） |
|
|
Dimension |
18*18*4mm |
|
|
LNA |
Gain |
20±2dB |
|
Noise Figure |
＜1.3 |
|
|
Supply Voltage |
3V DC |
|
|
Current Consumption |
9mA |
|
|
V.S.W.R |
＜2.0 |
|
|

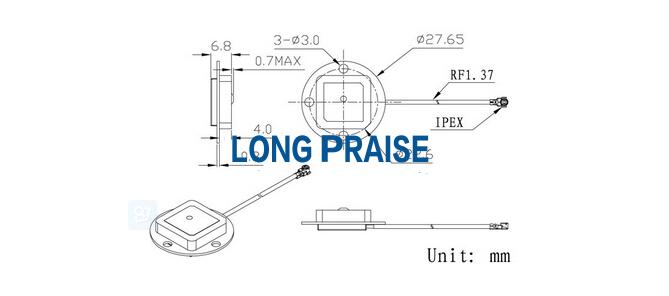

Mechanical |
Cable |
RF1.13/RF1.37 or others |
|
Connector |
IPEX or others |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 75% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Contact Mary
Sales Manager
E-Mail: mary@antennaseller.com
Wetchat:86-17688250405
Website: www.gpsantenna.net
