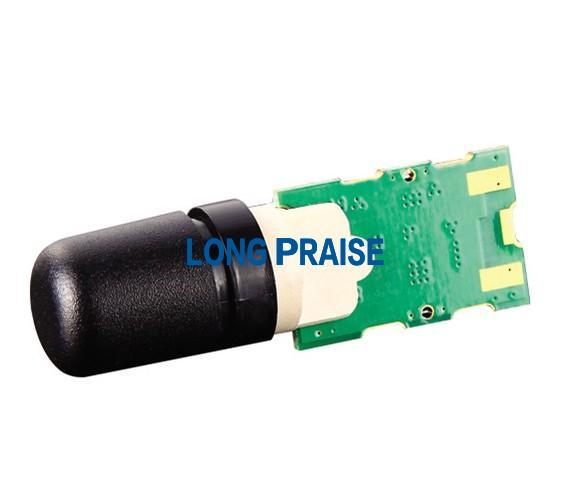

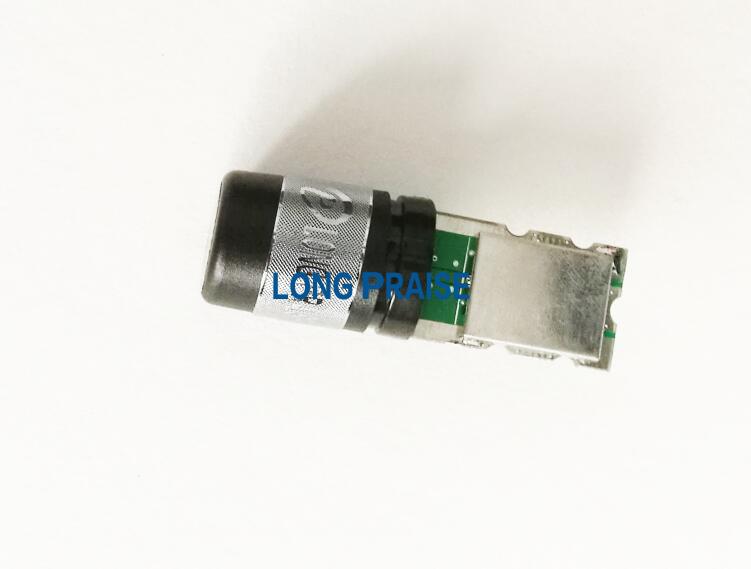

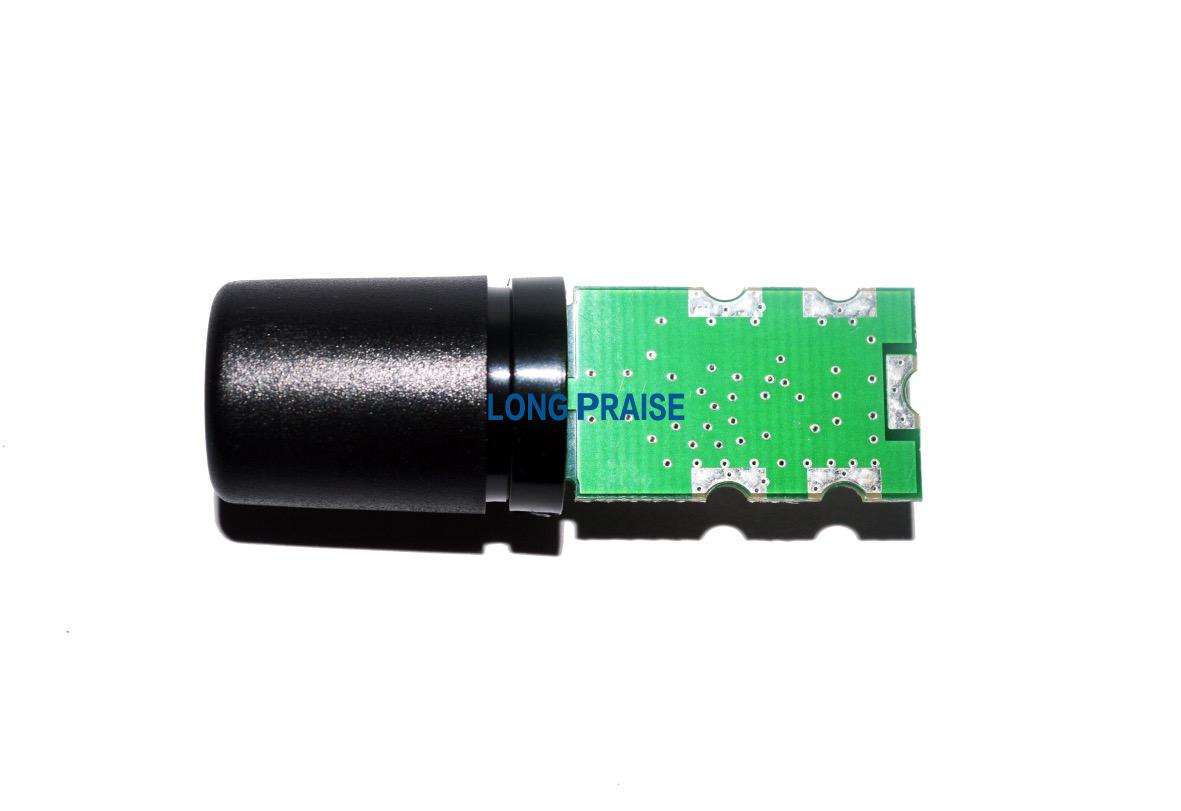

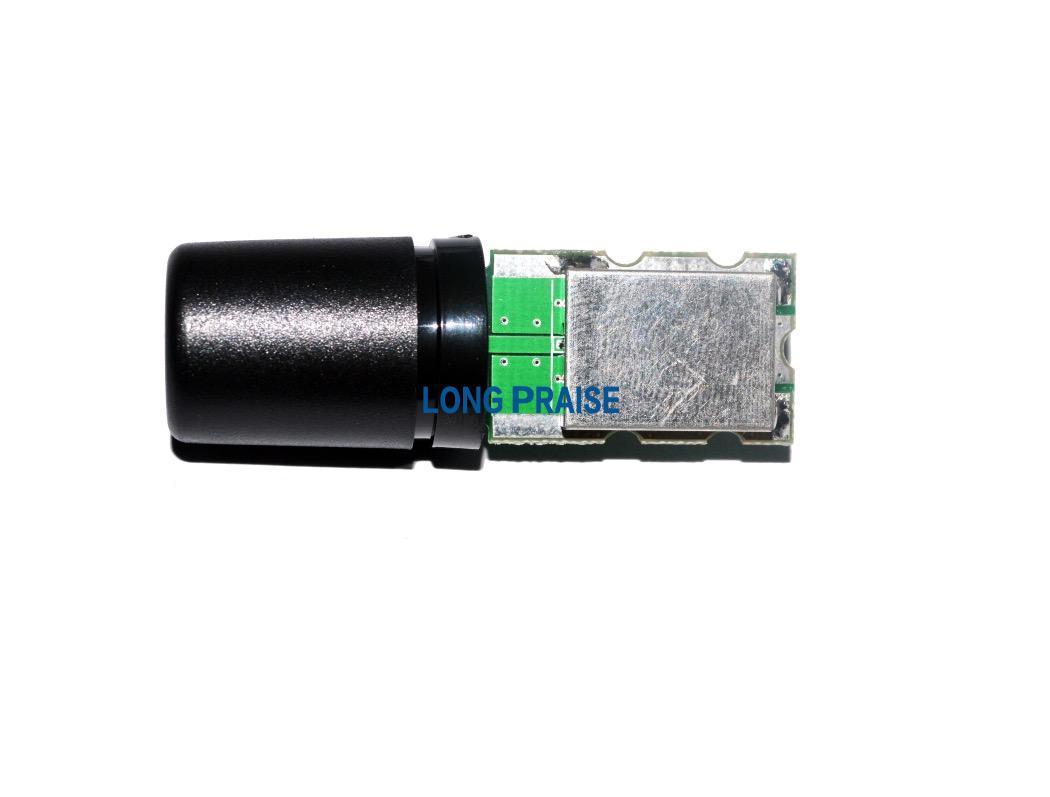

OMNI-DIRECTIONAL GPS ANTENNA LPG005
- Center Frequency（MHz） 1575.42 MHz
- Band Width（MHz） ±2 MHz
- V.S.W.R（in BW） 2.0︰1
- Gain（Zenith） 2 dB
- Product description: OMNI-DIRECTIONAL GPS ANTENNA
PRODUCT INTRODUCTION
Welcome to our factory.

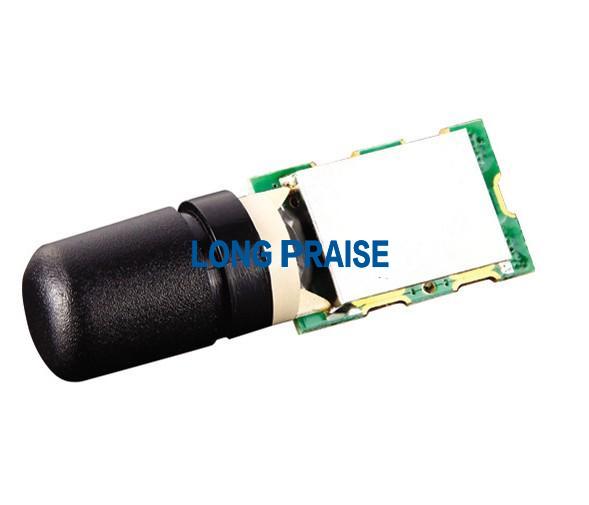

OMNI-DIRECTIONAL GPS ANTENNA
Form 1
|
No. |
Item |
Specifications |
Post Environmental Tolerance |
|
1 |
Center Frequency（MHz） |
1575.42 MHz |
±1 MHz |
|
2 |
Band Width（MHz） |
±2 MHz |
±1 MHz |
|
3 |
V.S.W.R（in BW） |
2.0︰1 |
— |
|
4 |
Gain（Zenith） |
2 dB |
±0.5 dB |
|
5 |
Polarization |
RHCP |
— |
|
6 |
Impedance |
50 Ω |
— |
LNA/Filter
Form 2
|
No. |
Item |
Specifications |
Post Environmental Tolerance |
|
1 |
LNA Gain |
26 dB |
±1 dB |
|
2 |
Noise Figure |
1.2 dB |
— |
|
3 |
DC Voltage |
3.3~3.5 V |
|
|
4 |
DC Current |
15~17 mA |
|

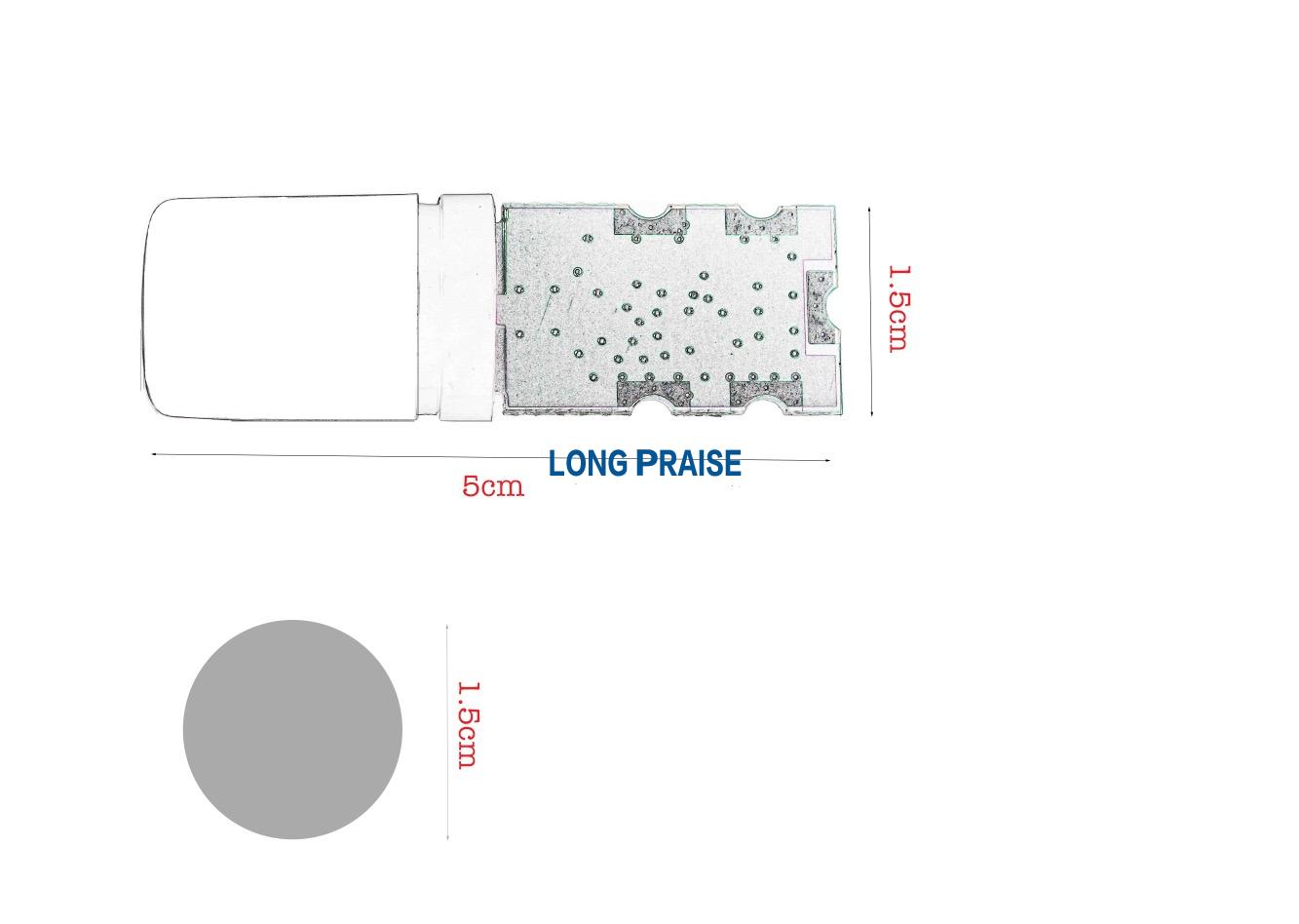

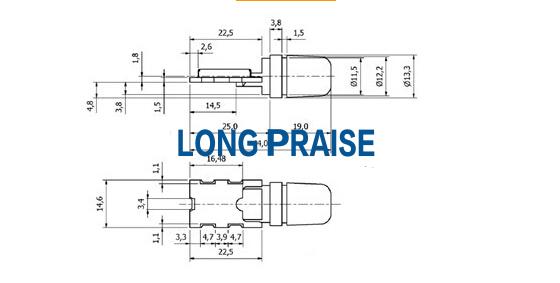

Mechanical
Form 3
|
No. |
Item |
Specification |
|
1 |
Cable |
RF1.13 or others |
|
2 |
Connector |
IPEX or others |
