> DVBT TV antenna

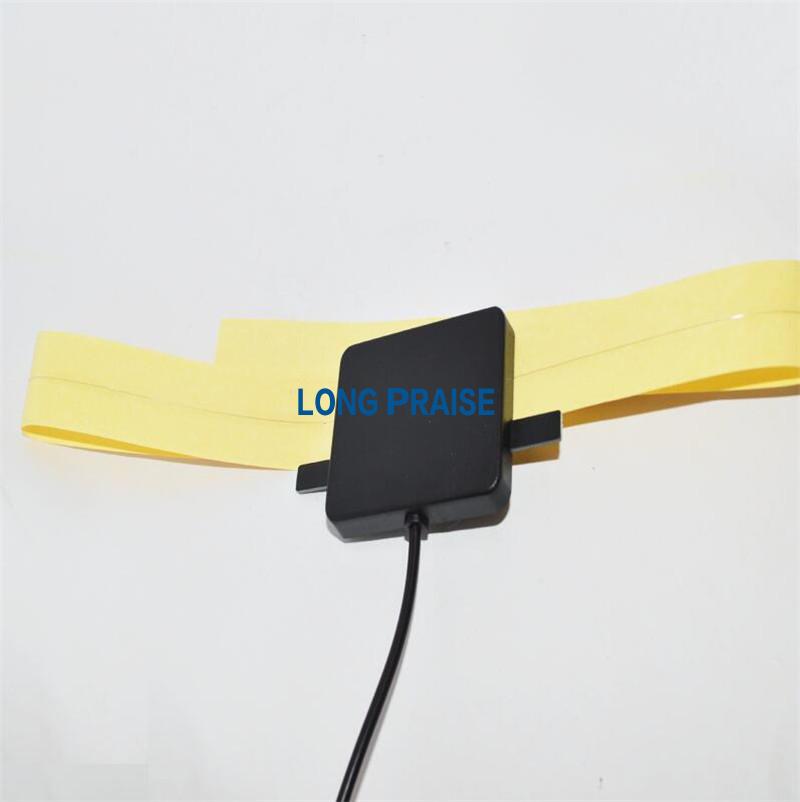

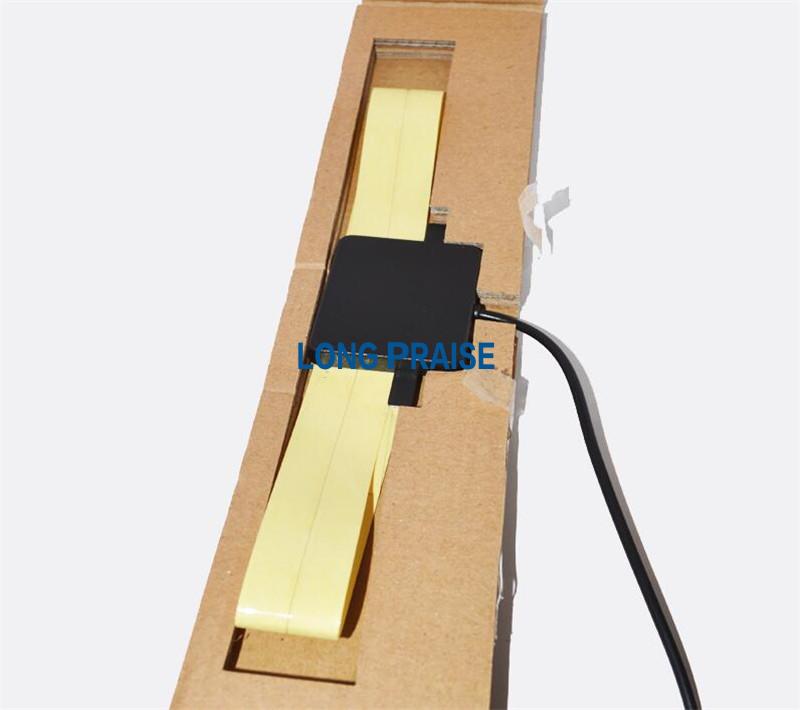

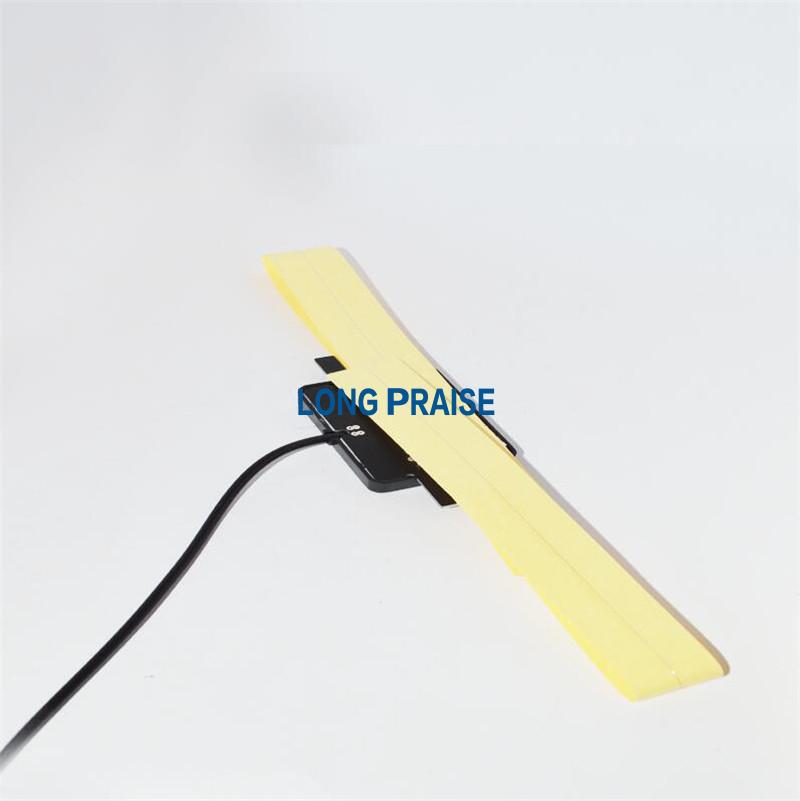

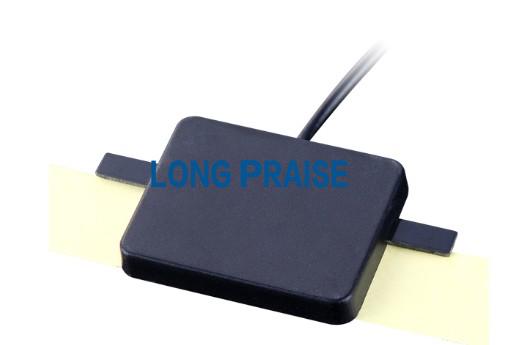

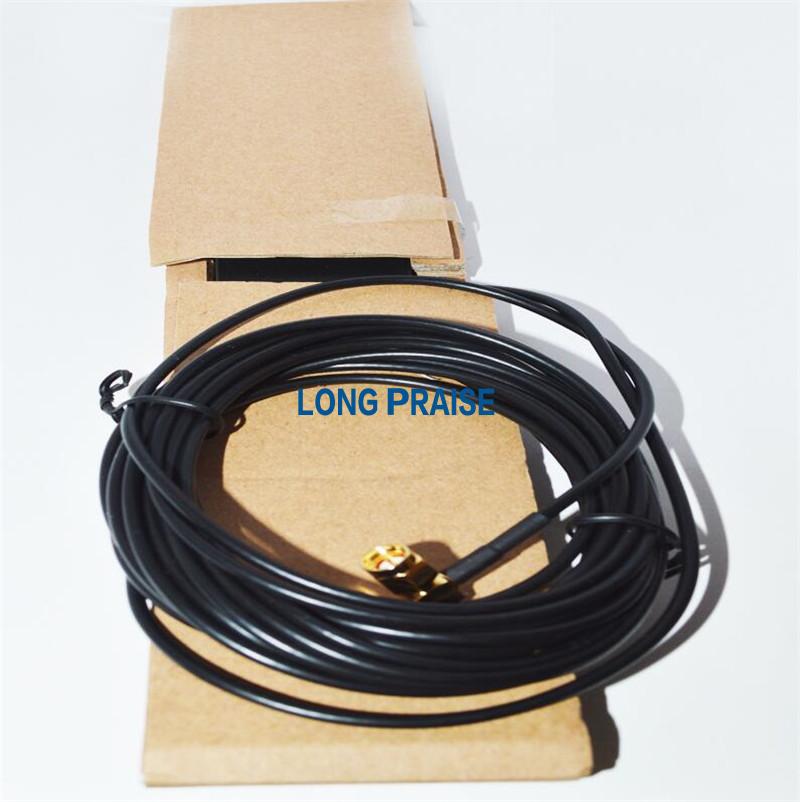

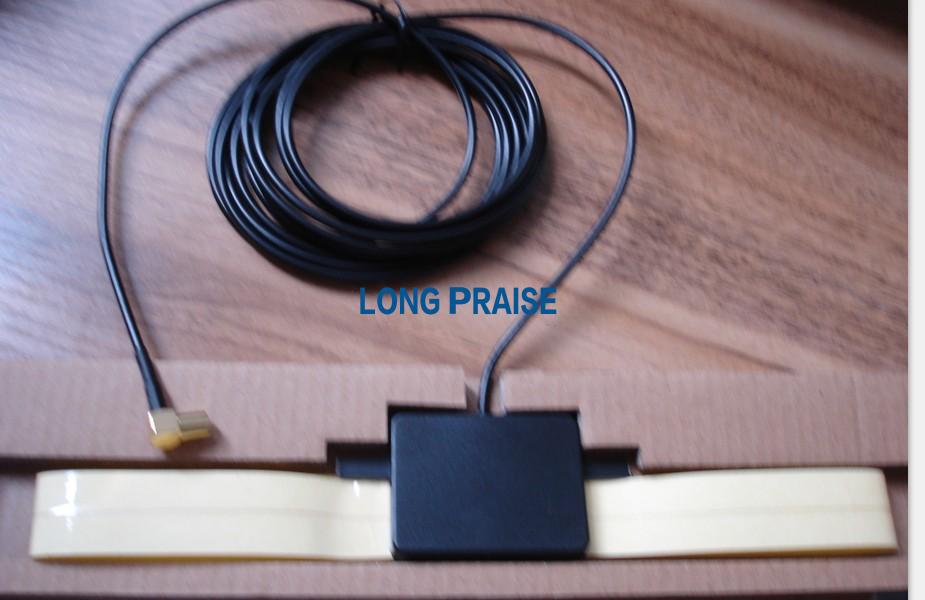

DAB digital radio antenna LPDA001
- Frequency Range 174~237MHz/1452~1492MHz
- Wave Band DAB BⅢ/L-Band
- Polarization Linear
- Impendance 50Ω
- Product description: DAB digital radio antenna for car Wave Band DAB BⅢ/L-Band,174~237MHz/1452~1492MHz
PRODUCT INTRODUCTION
Welcome to our factory.
Welcome to our factory.
DAB digital radio antenna1.DAB Active antenna with the frequency 174~237MHz/1452~1492MHz 2.Gain BIII:10+-2dB L-Band:2dBi, 3.Connector MCX/SMA/FAKRA etc

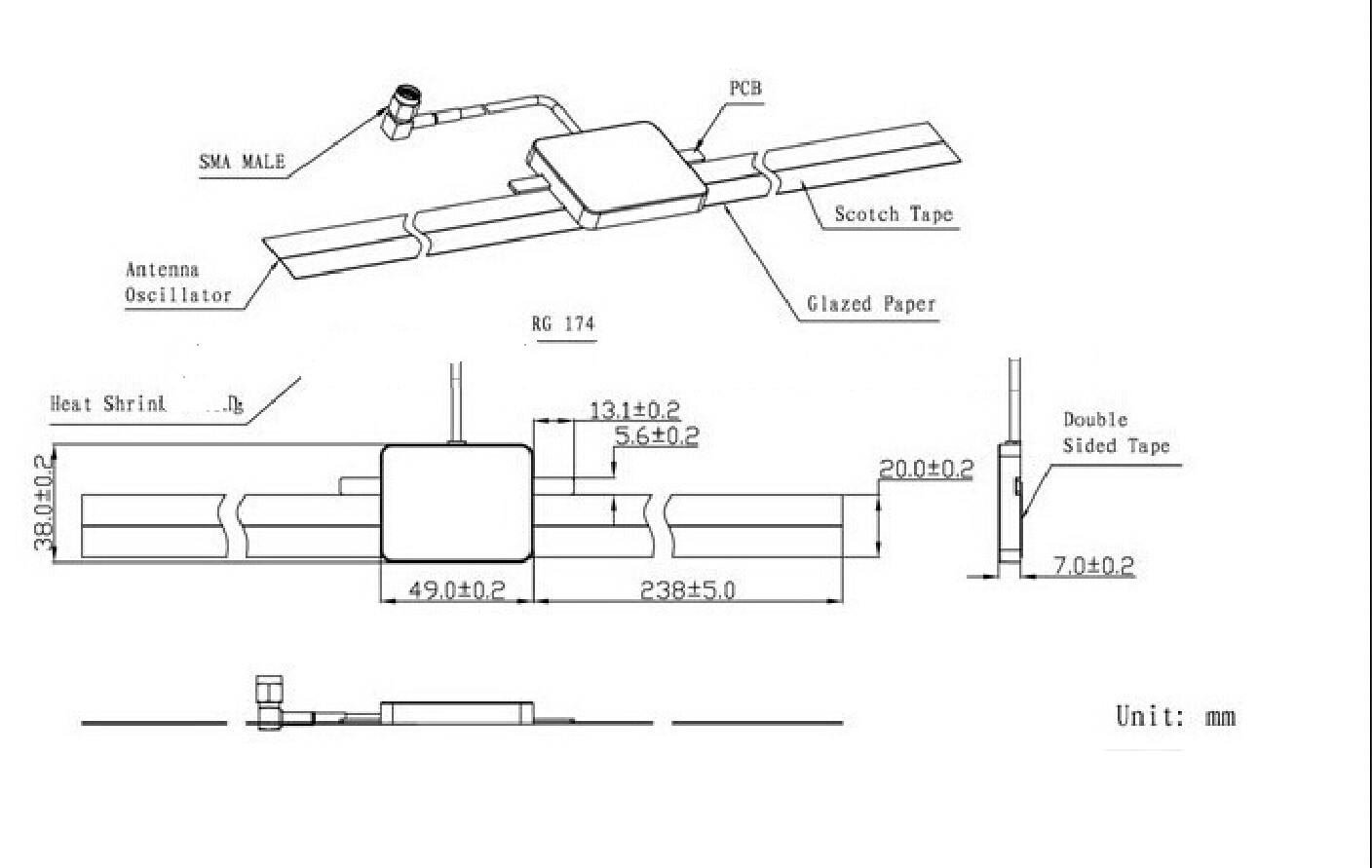

DAB Active antennas
|
Item |
Specifications |
|
|
Antenna&Amplifier |
Frequency Range |
174-237MHz/1452-1492MHz |
|
Wave Band |
DAB BⅢ/L-Band |
|
|
Polarization |
Linear |
|
|
Impendance |
50Ω |
|
|
PCB Dimension |
75.2*35.2*1.2mm |
|
|
Gain |
BⅢ:10±2dB L-Band:2dBi |
|
|
V.S.W.R |
<2.0 |
|
|
Supply Voltage |
12V DC |
|
|
Current Consumption |
40mA |
|
|
Mechanical |
Cable |
RG174 |
|
PCB |
FR4 |
|
|
Connector |
MCX/SMA/FAKRA or others |
|
|
Mounting Method |
Adhesive |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 75% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Contact Mary
Sales Manager
E-Mail: mary@antennaseller.com
Wetchat:86-17688250405
Website: www.gpsantenna.net
