> GPS and GLONASS COMBINATION ANTENNA

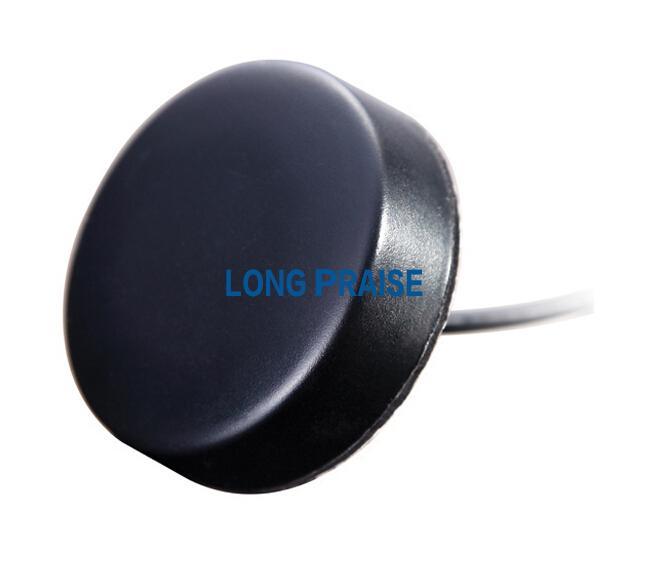

GPS and GLONASS combination antenna LPDG002
- Center Frequency 1602-1610MHz 1575.42+-3MHz
- Band Width CF+-5MHz
- Polarization RHCP
- Gain 5dBi
- Product description: GPS and GLONASS combination antenna,1602-1610MHz 1575.42±3MHz,5dBi,Axial Ratio 3dB(max)
PRODUCT INTRODUCTION
Welcome to our factory.
GPS and GLONASS combination antenna
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1602-1610MHz 1575.42+-3MHz |
|
Band Width |
CF+-5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBi |
|
|
V.S.W.R |
<1.5 | |
|
Impedance |
50ohm | |
|
Axial Ratio |
3dbi(MAX) | |
|
Dimension |
56x52x15mm | |
|
LNA |
Gain |
28+-2dB |
|
Noise Figure |
<1.5 | |
|
Filter Insertion Loss |
<3dB | |
|
Ex-band Attenuation |
35dB@CF±50MHz/50dB@CF±100MHz |
|
|
Supply Voltage |
2.2-5V DC |
|
|
Current Consumption |
10-20mA |
|
|
V.S.W.R |
<2.0 | |
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA/MCX/FAKRA or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Magnet/Adhesive |
|
|
Environmental |
Operating Temperature |
- 40-+85 degree |
|
|
Relative Humidity |
Up to 95% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally friendly |
ROHS Compliant |
