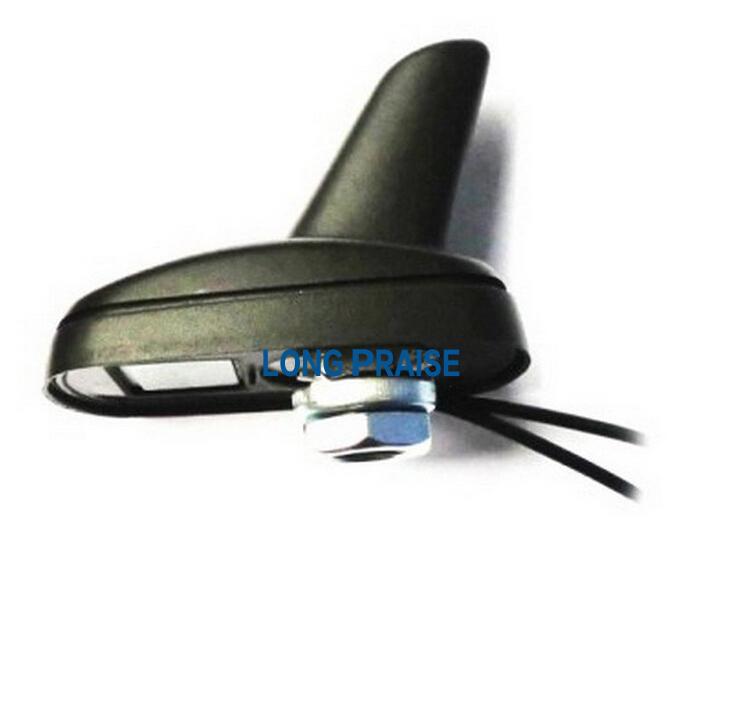

> GPS and GLONASS COMBINATION ANTENNA

Center Frequency 1602-1610MHz 1575.42+-3MHz
Band Width CF+-5MHz
Polarization RHCP
Gain 5dBi
Product description: Frequency（MHz）：1575/1602 Center Frequency（MHz）:1590 VSWR:1.5:1 Bandwidth（MHz）:5 Impedance（Ω）:50 Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Inquiry

Item		Specification
Ceramic Antenna	Frequency	1575/1602MHZ
	Center Frequency	1590MHZ
	V.S.W.R	1.5
	BandWidth	5MHZ
	Impedance	50ohm
	Peak Gain	>3dbi
	Polarization	RHCP
GSM Antenna	Center Frequency	850/900/1800/1900MHZ
	Typical Gain	2dBi+/-1dBi for 850MHz 2dBi+/-1dBi for 900MHz 1dBi+/-1dBi for 1800MHz; 1dBi+/-1dBi for1900MHz
	V.S.W.R	2.0
	Impedance	50ohm
LNA Filter	LNA Gain(Without cable)	28 dBi Typical
	Noise Figure(dB)	1.5
	Filter Out Band Attenuation	f0=1575.42 MHz
	7dB Min	f0+/-20MHz
	20dB Min	f0+/-50MHz
	30dB Min	f0+/-100MHz
	V.S.W.R	2.0
	DC Voltage(V)	2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
	DC Current(mA)	11Max
Mechanical	Weight	130g
	Dimension	84×53.8×62mm
	Cable Length	3/3/5m
	Connector	SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc
	Mount	Screw
	Color	Black
Environment	Working Temp	-40-85 degree
	Storage Temp	-45-100 degree
	Vibration	Sine sweep 1g(0-p)10~50~10Hz each axis
	Humidity	95%~100%RH
	Weatherproof	100%Waterproof
