> GPS and GLONASS COMBINATION ANTENNA

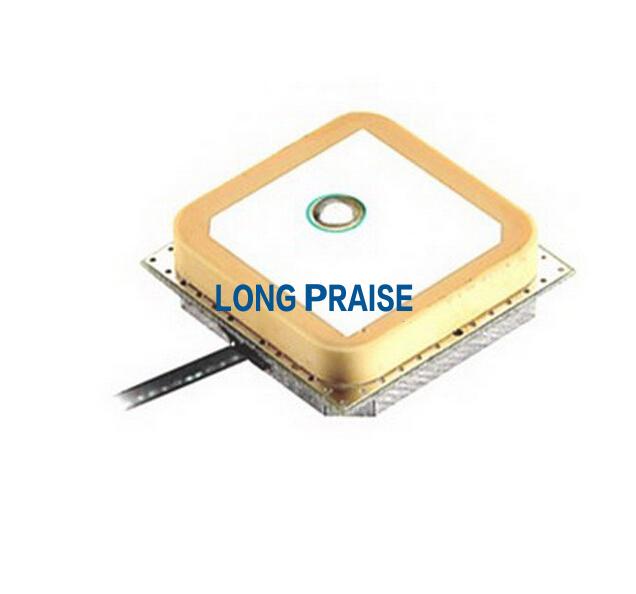

GPS and GLONASS combination antenna LPDG004
- Frequency 1575/1602MHZ
- Center Frequency 1590MHz
- VSWR 1.5
- Bandwidth 5MHz
- Product description: GPS and GLONASS combination antenna LPDG004，1575/1602MHZ,LNA Gain(Without cable):28 dBi Typical
PRODUCT INTRODUCTION
Welcome to our factory.
GPS and GLONASS combination antenna
| Item | Specification | |
|
Dielectric Antenna |
Frequency |
1575/1602MHZ |
|
Center Frequency |
1590MHz |
|
|
VSWR |
1.5 | |
|
Bandwidth |
5MHz | |
|
Impedance |
50ohm | |
|
Peak Gain |
3dBi Based on 7cm×7cm ground plane |
|
|
Gain Coverage |
-4dBi at –90°<0 <+90°(over 75% Volume) |
|
|
Polarization |
RHCP |
|
|
LNA/Filter |
LNA Gain(Without cable) |
28 dBi Typical |
|
|
Noise Figure |
1.5db |
|
|
Filter Out Band Attenuation |
f0=1575.42 MHz |
|
|
7dB Min |
f0+/-20MHz |
|
|
20dB Min |
f0+/-50MHz |
|
|
30dB Min |
f0+/-100MHz |
|
|
VSWR |
2.0 |
|
|
DC Voltage |
2.7/3.0/3.3/5.0/ 3.0 to 5.0 etc |
|
|
DC Current |
11ma |
|
Mechanical |
Weight |
60g |
|
|
Dimension |
27×27 X 8.2mm |
|
|
Cable Length |
5-20cm |
|
|
Connector |
SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX etc |
|
Environmental |
Working Temp |
-40~+85 degree |
|
|
Storage Temp |
-45~+100 degree |
|
|
Vibration |
Sine sweep 1g(0-p)10~50~10Hz each axis |
