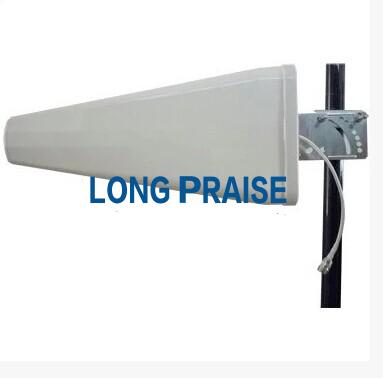

log-periodic 4G antenna 700-2700MHZ high-gain directional antenna LP4G002

Model NO LP4G002
Frequency Range 698-960/1710-2700MHz
Bandwidth -MHz 262/990
Gain 15dBi
Product description: 15DBI log-periodic 4G antenna 700-2700MHZ high-gain directional antenna
Inquiry

PRODUCT INTRODUCTION

Welcome to our factory.

15DBI 2G-3G-4G antenna LPDA 700-2700MHZ high-gain directional antenna

log-periodic 4G antenna 700-2700MHZ high-gain directional antenna

Model NO	LP4G002
Frequency Range	698-960/1710-2700MHz
Bandwidth -MHz	262/990
Gain	15dBi
beam width	H：90/70 V：60/55
VSWR	≤1.5
Input Impedance	50ohm
Polarization	Vertical
Max power	50W
Lightning protection	DC ground
Connector	N male
Mechanical Specifications
Size	44521065mm
Antenna weight	0.75kg
Working Temperature	-40-60
Rated Wind Velocity	60m/s
Radome color	white
Mounting way	hold in the pole
Pole diameter	35-50（mm）

Contact Mary

Sales Manager

E-Mail: mary@antennaseller.com

Wetchat:86-17688250405

Website: www.gpsantenna.net
