800 2500MHz outdoor directional antenna 14DBI panel antenna LP4F003

Frequency range 806-960，1710-2500MHz
Gain 14dBi
Impedance 50ohm
VSWR <1.5
Product description: 800-2500MHz outdoor directional antenna 14DBI panel antenna
Inquiry

PRODUCT INTRODUCTION

Welcome to our factory.

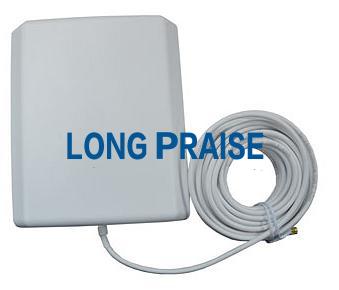

800-2500MHz outdoor directional antenna 14DBI panel antenna

800-2500MHz outdoor directional antenna 14DBI panel antenna

800-2500MHz outdoor directional antenna 14DBI panel antenna

800 2500MHz outdoor directional antenna 14DBI panel antenna

Model	LP4F003
Frequency range	806-960，1710-2500MHz
Gain	14dBi
Impedance	50ohm
VSWR	<1.5
Polarization	Vertical
Horizontal	beam width 90
Vertical	beam width 55
Front to back ratio	> 15dB
connector	N-type female
Maximum power	100W
Lightning Protection	DC ground

Main mechanical performance

Length	210mm
Width	180mm
thickness	43mm

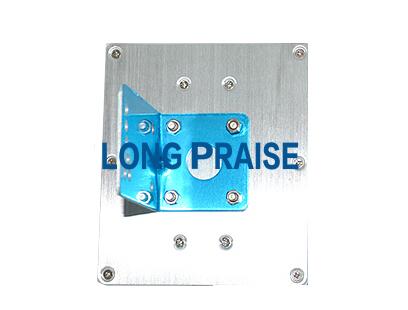

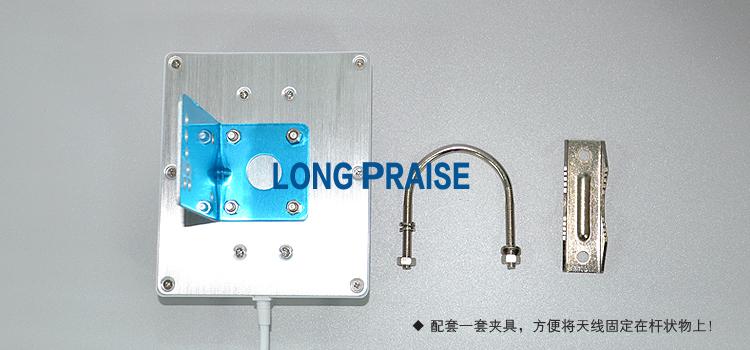

Mounting Type	Wall / Irons
Diameter mast	3 - 5 cm
Antenna Weight	0.66 kg

Contact Mary

Sales Manager

E-Mail: mary@antennaseller.com

Wetchat:86-17688250405

Website: www.gpsantenna.net
