> 700-2700Mhz Antenna

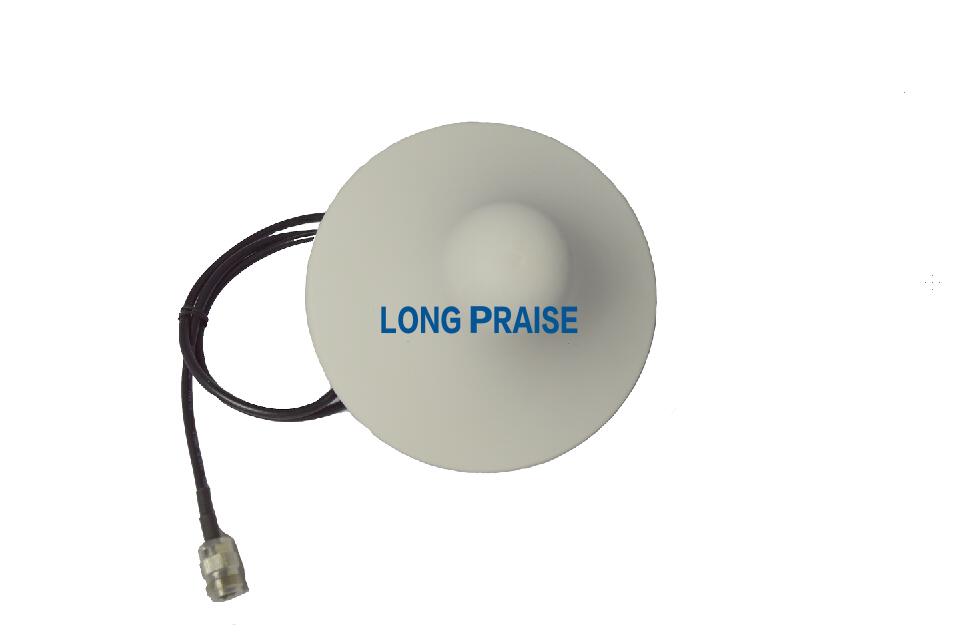

Indoor omnidirectional ceiling antenna 800-2500Mhz full-band antenna gain 5DB LP4F002
- Frequency 806-960/1710-2500(mhz)
- Gain low 2DB/high 5DB
- Polarization Vertical
- V.S.W.R <=1.5
- Product description: Indoor omnidirectional ceiling antenna 800-2500Mhz full-band antenna gain 5DB
PRODUCT INTRODUCTION
Welcome to our factory.
Indoor omnidirectional ceiling antenna 800-2500Mhz full-band antenna gain 5DB
| Model | LP4F002 |
| Frequency |
806-960/1710-2500(mhz) |
|
Gain |
low 2DB/high 5DB |
| Polarization | Vertical |
| V.S.W.R | <=1.5 |
| Impedance | 50ohm |
| Max Power | 50w |
| Thunder Protect | Ground |
| Connector | SMA |
| Dimension | 180mm |
| Weight | 250g |
|
Radiation oscillator material |
Copper |
|
Radome material |
ABS |
| Working temperature | -40-60 degree |
|
Reflective material |
electrolysis board |
Our Product advantage: Superior coverage, penetration. Low frequency 2DB high frequency gain 5DB, support GSM / CDMA / PCS / 3G / WLAN, 806 - 2500MHz and other wideband channels, low VSWR, small size, beautiful appearance, general ceiling ceiling installation
Contact Mary
Sales Manager
E-Mail: mary@antennaseller.com
Wetchat:86-17688250405
Website: www.gpsantenna.net
PREVIOUS：30dbi External GSM Antenna with big magnetic base 900/1800 car antenna high gain LPGM011
NEXT：800 2500MHz outdoor directional antenna 14DBI panel antenna LP4F003
