Home  > 4G antenna
  • 14DBI 700-2700MHz outdoor directional 4G antenna LP4G007

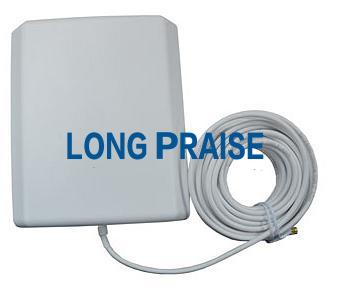

14DBI 700-2700MHz outdoor directional 4G antenna LP4G007

  • Frequency range 700-2700MHz​
  • Gain 14dBi​
  • Impedance 50ohm​
  • VSWR <1.8​
  • Product description: 14DBI 700-2700MHz outdoor directional 4G antenna Panel Antenna N connector wide frequency range with good signal
  • Inquiry

PRODUCT INTRODUCTION


Welcome to our factory.long praise factory


long praise factory


long praise certificate


800-2500MHz outdoor directional antenna 14DBI panel antenna


800-2500MHz outdoor directional antenna 14DBI panel antenna

800-2500MHz outdoor directional antenna 14DBI panel antenna

14DBI 700-2700MHz outdoor directional 4G antenna

Model LP4G007
Frequency range 700-2700MHz
Gain
14dBi
Impedance
50ohm
VSWR
<1.8
Polarization
4G directional antenna
Horizontal
beam width 90
Vertical
beam width 55
Front to back ratio
 > 15dB
connector
 N-type female
Maximum power
100W
Lightning Protection
DC ground

Main mechanical performance

Length
 210mm
Width
180mm
thickness
 43mm
Mounting Type
 Wall / Irons
Diameter mast
 3 - 5 cm
Antenna Weight
0.66 kg




Contact Mary

Sales Manager

E-Mail: mary@antennaseller.com

Wetchat:86-17688250405

Website: www.gpsantenna.net



PREVIOUS：LTE 4G antenna with Sucker and copper chip LP4G006 NEXT：LP4G008 SMA 4G antenna LTE 38DB for Huawei B593S-850 B880
