> Internal GPS patch antenna

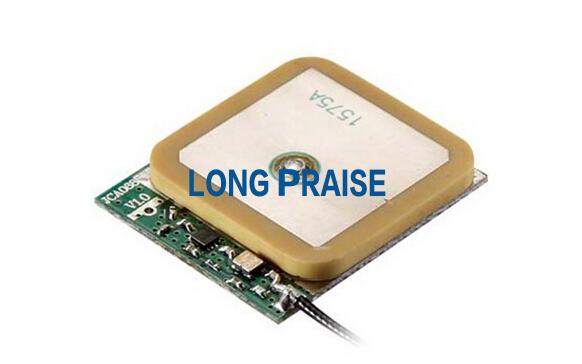

GPS Patch antenna GPS Internal Antenna LPIG0905
- Center Frequency 1575.42±3MHz
- Band Width CF±5MHz
- Polarization RHCP
- Gain 5dBic（Zenith）
- Product description: GPS Patch antenna GPS Internal Antenna LPIG0905 25*25*2mm 30dbi gain rf1.13cable IPEX connector
PRODUCT INTRODUCTION
Welcome to our factory.
GPS Patch antenna GPS Internal Antenna
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBic（Zenith） |
|
|
V.S.W.R |
＜1.5 |
|
|
Impendance |
50ohm |
|
|
Axial Ratio |
3dB（max） |
|
|

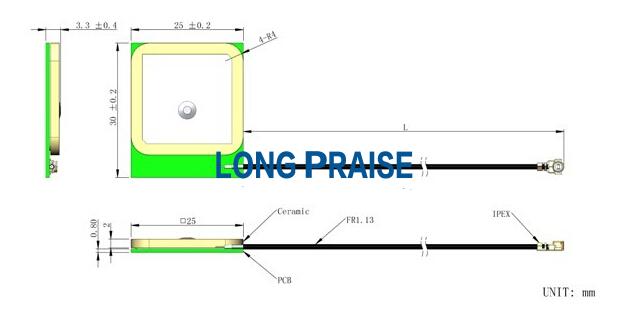

Dimension |
25*25*2mm |
|
|
LNA |
Gain |
22±2dB |
|
Noise Figure |
＜1.5 |
|
|
Ex-band Attenuation |
30dB@CF±40MHz |
|
|
Supply Voltage |
3.3V DC |
|
|
Current Consumption |
9mA |
|
|
V.S.W.R |
＜2.0 |
|
|
Mechanical |
Cable |
RF1.13 or others |
|
Connector |
IPEX or others |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 75% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
