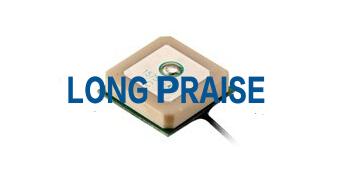

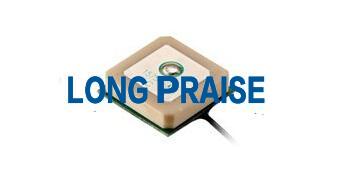

GPS Patch antenna GPS Internal Antenna LPIG0904
- Center Frequency 1575.42±3MHz
- Band Width CF±5MHz
- Polarization RHCP
- Gain 2dBic（Zenith）
- Product description: GPS Patch antenna GPS Internal Antenna LPIG0904 18*18mm, with LNA filter,28db small size for gps device
PRODUCT INTRODUCTION
Welcome to our factory.
GPS Patch antenna GPS Internal Antenna
1. Electrical Characteristics
1.1 Dielectric Antenna
Form 1
|
No. |
Item |
Specifications |
Post Environmental Tolerance |
|
1 |
Center Frequency（MHz） |
1575.42 MHz |
±3 MHz |
|
2 |
Band Width（MHz） |
±5 MHz |
±1 MHz |
|
3 |
V.S.W.R（in BW） |
1.5︰1 |
— |
|
4 |
Gain（Zenith） |
2 dB |
±0.5 dB |
|
5 |
Polarization |
RHCP |
— |
|
6 |
Impedance |
50 Ω |
— |
1.2 LNA/Filter
Form 2
|
No. |
Item |
Specifications |
Post Environmental Tolerance |
|
1 |
LNA Gain |
28±2 dB |
±2.5 dB |
|
2 |
Noise Figure |
1.5 dB |
— |
|
3 |
Filter Out Band Attenuation |
30dB Min f0+40MHz 30dB Min f0-40MHz 40dB Min f0+100MHz 35dB Min f0-100MHz |
±1.0 dB |
|
4 |
DC Voltage |
3~5 V |
|
|
5 |
DC Current |
5~10 mA |
|

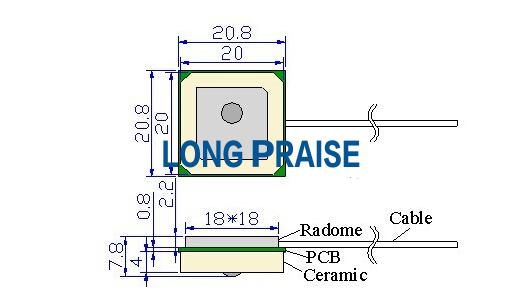

1.3 Mechanical
Form 3
|
No. |
Item |
Specification |
|
1 |
Cable |
RF1.13 or others |
|
2 |
Connector |
IPEX or others |
|
3 |
Mounting |
Internal |
Contact Mary
Sales Manager
E-Mail: mary@antennaseller.com
Wetchat:86-17688250405
